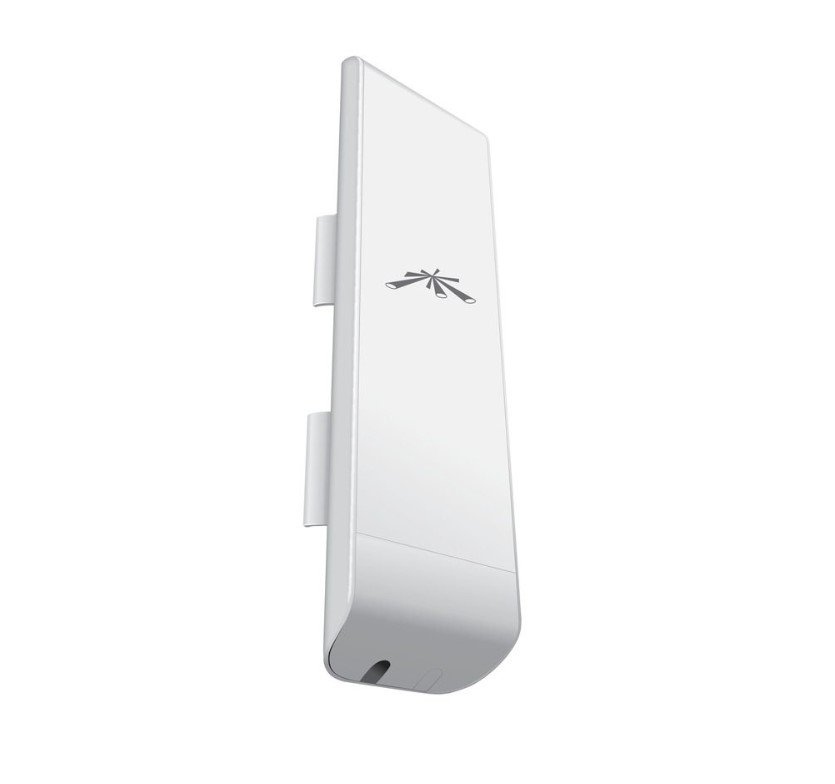

Ubiquiti NanoStation M2 Outdoor WiFi Access Point – 2.4GHz, 11dBi Dual Antennas, 300 Mb/s, PoE Powered

Ubiquiti NanoStation M2 Outdoor WiFi Access Point

The NanoStation M2 from Ubiquiti is designed as a robust outdoor wireless access point, featuring dual built-in 11dBi antennas optimized for 2.4GHz frequency. It delivers strong, reliable connectivity with up to 300 Mb/s transmission speed, making it ideal for outdoor client solutions requiring enhanced range and performance.

Key benefits

• Dual 11dBi antennas: Enhance wireless range with 2x2 MIMO technology for stable connections.
• Supports multiple modes: Operates as client, repeater, AP router, access point, or client router (wisp).
• High transmission speed: Provides up to 300 Mb/s on the 2.4 GHz band for smooth data flow.
• PoE powered: Supports 24V DC PoE input and output for simplified installations.
• Outdoor rated: Operates efficiently in wide temperature ranges from -30 to 75 °C.

Technical Specifications

• Wireless frequency: 2.4 GHz
• Processor: Atheros MIPS 24KC at 400 MHz
• Memory: 32 MB operating memory
• LAN ports: 2× 10/100 Mbps Ethernet
• Max power consumption: 8 W
• Power supply: 24V DC PoE input/output
• Antenna gain: 11 dBi dual antennas
• Security: WEP, WPA, WPA2 encryption supported
• WiFi standards: 802.11b/g/n, airMAX
• Operating temperature: -30 to 75 °C
• Dimensions (WxDxH): 80 × 31 × 293 mm
• Weight: 400 g

Ideal for

• Outdoor client networking solutions requiring extended WiFi coverage.
• Point-to-point or point-to-multipoint wireless connections in outdoor environments.
• Sites needing flexible mode operation including AP, client, and repeater.

Package contents

• NanoStation M2 device for outdoor use
• PoE power supply unit
• Power cable for connection
• Two zip ties for mounting support
